Getting Started with DRYTorch
This notebook demonstrates how to use the DRYTorch library for organizing machine learning experiments.
Deep Prior Upsampling
We will perform image super-resolution (super-resolution) using a technique called Deep Image Priors (DIP).
The approach is as follows: We train the network to minimize the difference between its downsampled output and the low-resolution target image. The network should be able to generalize this training objective and reconstruct the high-resolution detail. We then evaluate its output against the original image, using simple bilinear interpolation of the low-resolution version as a non-learning baseline for comparison.
Requirements
DRYTorch’s only mandatory dependencies are numpy and torch. For enhanced functionality and a smoother experience, it is recommended to install PyYAML and tqdm. The library requires Python 3.11 or newer. This tutorial does not rely on any additional optional dependencies.
The cell below uses uv as package manager.
! uv pip install drytorch
Download the data
Download the image data from the GitHub repository.
import urllib.request
from io import BytesIO
import numpy as np
url = 'https://raw.githubusercontent.com/nverchev/drytorch/main/docs/tutorials/data/flower.npy'
with urllib.request.urlopen(url) as response: # noqa: S310
data_bytes = response.read()
flower_np = np.load(BytesIO(data_bytes))
Preprocess the image
The target image has a resolution of 128 x 128. We downsample it to 64 x 64 using bilinear interpolation and use it again to upsample back to the original resolution to create a baseline.
import numpy as np
import torch
TARGET_SIZE = 128
DOWNSAMPLED_SIZE = 64
def interpolate(image_torch: torch.Tensor, target_size: int) -> torch.Tensor:
"""Performs an interpolation on an image array.
Args:
image_torch: a NumPy array of an image.
target_size: resulting height and width
Returns:
A torch tensor of shape (batch, target_size, target_size).
"""
return torch.nn.functional.interpolate(
image_torch,
size=(target_size, target_size),
mode='bilinear',
)
flower_torch = torch.from_numpy(flower_np).permute(2, 0, 1).float()
flower_torch /= 255
flower_torch = interpolate(flower_torch.unsqueeze(0), TARGET_SIZE).squeeze()
flower_torch_downsampled = interpolate(
flower_torch.unsqueeze(0), DOWNSAMPLED_SIZE
).squeeze()
baseline_reconstruction = interpolate(
flower_torch_downsampled.unsqueeze(0), TARGET_SIZE
).squeeze()

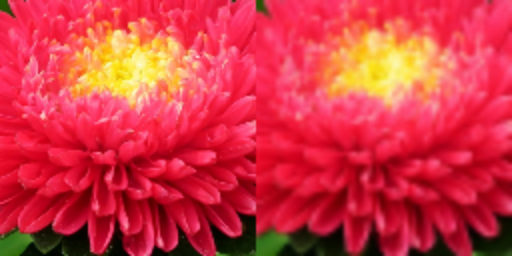

Let us visualize the image we want to reproduce and the baseline reconstruction.
from IPython.display import HTML
from IPython.display import display as ip_display
from PIL import Image as Image
def display_tensor_images(named_images: dict[str, torch.Tensor]) -> None:
"""Display a PyTorch image tensor.
Args:
named_images: list of tensors with dimensions (channels, height, width).
"""
title_html = ''
for image_name in named_images:
title_html += f"""
<div style="text-align: center; width: 256px; font-size: 2em;">
{image_name}
</div>"""
ip_display(HTML(f"""<div style=" display: flex;">{title_html}</div>"""))
image = torch.cat(list(named_images.values()), dim=2)
image = torch.nn.functional.interpolate(
image.unsqueeze(0),
size=(256, 256 * len(named_images)),
mode='bilinear',
).squeeze()
np_array = image.detach().cpu().permute(1, 2, 0).numpy().copy()
np_array_int = (np_array * 255).astype(np.uint8)
ip_display(Image.fromarray(np_array_int))
return
display_tensor_images(
{'Original': flower_torch, 'Baseline': baseline_reconstruction}
)
Set up the experiment
In DRYTorch, an experiment is a reproducible execution entirely defined by its configuration file. A run is a session that you can later resume. Multiple runs of the same experiment are intended for reproducibility and debugging.
Define the Specification
DRYTorch supports scope-dependent configuration, meaning the experiment configuration is globally available during the experimental run. This design avoids the need to explicitly pass the configuration as a parameter and ensures it is reliably aligned with the current experiment.
For improved type checking and auto-completion, it is recommended to subclass the base experiment class and explicitly integrate your specific configuration structure.
Tip: use Pydantic dataclasses to validate your settings.
import dataclasses as dataclasses
import os
from drytorch import Experiment
@dataclasses.dataclass(frozen=True)
class ArchitecturalSettings:
"""Architectural settings for a Resnet with three stages.
Attributes:
norm_flag: whether to use instance normalization.
n_blocks_per_stage: number of convolutional blocks in the three stages.
max_width: number of channels of the middle stage (half in the others).
"""
norm_flag: bool = False
n_blocks_per_stage: tuple[int, int, int] = (2, 2, 2)
max_width: int = 32
@dataclasses.dataclass(frozen=True)
class TrainingSettings:
"""Training settings for the current experiment.
Attributes:
lr: learning rate.
n_epochs: number of training epochs.
"""
lr: float = 0.001
n_epochs: int = int(os.getenv('EPOCHS', '30'))
@dataclasses.dataclass(frozen=True)
class AllSettings:
"""General settings for the current experiment.
Attributes:
architecture: number of training epochs.
train: how many samples in each mini-batch
"""
architecture = ArchitecturalSettings()
train = TrainingSettings()
class UpsamplingExperiment(Experiment[AllSettings]):
"""Class for upsampling experiments."""
pass
Create an experiment
Together with the configuration, you can assign a name and a directory to the experiment, which will determine where the checkpoints, the metadata, and the logs will be located.
import pathlib
settings = AllSettings()
experiment = UpsamplingExperiment(
settings, name='Getting Started', par_dir=pathlib.Path('experiments')
)
Select the trackers
Trackers are responsible for logging and plotting but have no impact on the experiment’s computation. By default, DRYTorch provides trackers for logging, displaying a progress bar, and storing metadata.
Here, we want to save the training and test results in .csv files, so we add the CSVDumper to the default ones.
from drytorch.trackers.csv import CSVDumper
experiment.trackers.subscribe(CSVDumper())
Create the run and start the experiment
It is recommended to create a new run or resume a previous one using the create_run method.
The Run instance works best as a context manager:
with experiment.create_run():
execute_ml_op()
However, in notebooks, starting the run procedurally is more practical.
run = experiment.create_run()
run.start()
Custom classes
The DRYTorch philosophy prioritizes maximum flexibility, allowing you to write custom classes and structured data for your task while taking full advantage of type annotations. The classes should have as few arguments as possible and rely on the global configuration for their instantiation.
Define Data Structures
Following its philosophy, DRYTorch supports structured inputs and outputs for your model, as well as targets for your loss. This is particularly helpful for unstructured data of different inputs (e.g., modalities) or targets.
The structure for inputs and targets must be compatible with the default PyTorch collate_fn. This means it can be a torch.Tensor, a list of tensors, or a namedtuple of tensors. Outputs can have an arbitrary type.
from typing import NamedTuple
import torch
class Inputs(NamedTuple):
"""Structured input.
Deep priors do not use any input, so this class is empty
"""
class TrainingTargets(NamedTuple):
"""Structured target for training.
Attributes:
flower_downsampled: flower downsampled 2 to 1.
"""
flower_downsampled: torch.Tensor
class TestTargets(NamedTuple):
"""Structured target for testing.
Attributes:
flower_original: the original flower array.
"""
flower_original: torch.Tensor
@dataclasses.dataclass
class Outputs:
"""Structured target.
Attributes:
flower_reconstructed: reconstructed array of the flower image.
"""
flower_reconstructed: torch.Tensor
Create the Datasets
The test and training datasets consist of a single image. In the test dataset, the image is the one we want to reconstruct, while in the training dataset, the image is its downsampled version. To better illustrate training results and the functioning of DRYTorch, we define a training epoch as a fixed number of iterations over the given image.
DRYTorch expects an (annotated) instance of torch.utils.data.Dataset.
import torch
from torch.utils import data
class TestDataset(data.Dataset[tuple[Inputs, TestTargets]]):
"""This dataset evaluates the reconstruction of the image.
Attributes:
target_image: the image to reconstruct
"""
def __init__(self, target_image: torch.Tensor) -> None:
"""Constructor.
Args:
target_image: the image to reconstruct
"""
super().__init__()
self.target_image = target_image
def __len__(self) -> int:
"""Number of samples to test."""
return 1
def __getitem__(self, _) -> tuple[Inputs, TestTargets]:
"""Method to overwrite to define the batch.
Returns:
Tuple with Inputs and Targets instances.
"""
inputs = Inputs()
targets = TestTargets(flower_original=self.target_image)
return inputs, targets
class TrainingDataset(data.Dataset[tuple[Inputs, TrainingTargets]]):
"""This dataset trains the network to reconstruct the image.
Attributes:
downsampled_image: the image to upsample.
"""
def __init__(self, downsampled_image: torch.Tensor) -> None:
"""Constructor.
Args:
downsampled_image: the image to upsample.
"""
super().__init__()
self.downsampled_image = downsampled_image
def __len__(self) -> int:
"""Number of iterations per epoch."""
return 32
def __getitem__(self, _) -> tuple[Inputs, TrainingTargets]:
"""Method to overwrite to define the batch.
Returns:
tuple with Inputs and Targets instances.
"""
inputs = Inputs()
targets: TrainingTargets = TrainingTargets(
flower_downsampled=self.downsampled_image
)
return inputs, targets
training_dataset = TrainingDataset(flower_torch_downsampled)
test_dataset = TestDataset(flower_torch)
Create the Network
This implementation of a Deep Prior network uses an internal fixed parameter as the input to a residual convolutional network.
You define the PyTorch Module for your model as usual, defining (and annotating) the forward method.
from torch import nn
class ResNetBlock(nn.Module):
"""The fundamental residual block for ResNet."""
def __init__(self, in_channels: int, out_channels: int) -> None:
"""Initiates two convolution and the skip connection."""
super().__init__()
cfg_arc = UpsamplingExperiment.get_config().architecture
norm_flag = cfg_arc.norm_flag
self.net = nn.Sequential(
nn.Conv2d(
in_channels, out_channels, kernel_size=3, padding=1, bias=False
),
nn.LayerNorm(out_channels) if norm_flag else nn.Identity(),
nn.ReLU(inplace=True),
nn.Conv2d(
out_channels,
out_channels,
kernel_size=3,
padding=1,
bias=False,
),
nn.InstanceNorm2d(out_channels) if norm_flag else nn.Identity(),
)
self.shortcut = nn.Sequential()
if in_channels != out_channels:
self.shortcut = nn.Sequential(
nn.Conv2d(
in_channels,
out_channels,
kernel_size=1,
bias=False,
),
nn.LayerNorm(out_channels) if norm_flag else nn.Identity(),
)
self.final_activation = nn.ReLU(inplace=True)
def forward(self, x: torch.Tensor) -> torch.Tensor:
"""Passes the input through the net, adding the residual connection."""
out = self.net(x) + self.shortcut(x)
out = self.final_activation(out)
return out
class ResNetStage(nn.Sequential):
"""A single stage of the ResNet architecture."""
def __init__(
self, in_channels: int, out_channels: int, num_blocks: int
) -> None:
"""Initializes a stage with the required number of blocks."""
layers: list[nn.Module] = []
current_channels = in_channels
for _ in range(num_blocks):
layers.append(ResNetBlock(current_channels, out_channels))
current_channels = out_channels
super().__init__(*layers)
class ResNet(nn.Sequential):
"""A ResNet model for image reconstruction."""
def __init__(self) -> None:
"""Initializes the entire ResNet structure."""
cfg_arc = UpsamplingExperiment.get_config().architecture
norm_flag = cfg_arc.norm_flag
max_width = cfg_arc.max_width
num_blocks = cfg_arc.n_blocks_per_stage
layers: list[nn.Module] = [
nn.Conv2d(16, max_width // 2, kernel_size=3, padding=1, bias=False),
nn.LayerNorm(max_width // 2) if norm_flag else nn.Identity(),
nn.ReLU(inplace=True),
ResNetStage(max_width // 2, max_width, num_blocks[0]),
ResNetStage(max_width, max_width, num_blocks[1]),
ResNetStage(max_width, max_width // 2, num_blocks[2]),
nn.Conv2d(max_width // 2, 3, kernel_size=3, padding=1),
nn.Sigmoid(),
]
super().__init__(*layers)
class DeepPriorNet(nn.Module):
"""A net with a fixed input parameter."""
def __init__(self) -> None:
"""Instantiate the net and the fixed input."""
super().__init__()
self.fixed_input = torch.nn.Parameter(
torch.randn(1, 16, TARGET_SIZE, TARGET_SIZE)
)
self.net = ResNet()
def forward(self, _: Inputs) -> Outputs:
"""Call the net on the fixed input."""
return Outputs(self.net(self.fixed_input))
network = DeepPriorNet()
Define the loss and metric functions
In this experiment, we will use the Mean Squared Error (MSE) for training and the Peak Signal-to-Noise Ratio (PSNR) for evaluating the super-resolution image. The bilinear interpolation baseline has a PSNR of 25.90.
DRYTorch expects loss and metric functions that take outputs and targets as arguments.
def psnr(recon: torch.Tensor, target: torch.Tensor) -> torch.Tensor:
"""Compute Peak Signal-to-Noise Ratio between two images ([0, 1] range)."""
mse = nn.functional.mse_loss(recon, target)
if mse == 0:
return torch.tensor(torch.inf)
return -10 * torch.log10(mse)
def target_psnr(outputs: Outputs, targets: TestTargets) -> torch.Tensor:
"""Mean Square Error in the target space."""
return psnr(outputs.flower_reconstructed, targets.flower_original)
def downsampled_mse(outputs: Outputs, targets: TrainingTargets) -> torch.Tensor:
"""Mean Square Error in the downsampled space."""
reconstruction_downsampled = interpolate(
outputs.flower_reconstructed, DOWNSAMPLED_SIZE
)
return nn.functional.mse_loss(
reconstruction_downsampled, targets.flower_downsampled
)
baseline_psnr = psnr(baseline_reconstruction, flower_torch).item()
if not np.isclose(baseline_psnr, 25.90, atol=1e-2):
raise AssertionError('Baseline should value should be about 25.90.')
Library implementations
DRYTorch provides default implementations for the core components of a typical ML workflow. Below, we briefly summarize the main functionalities:
DataLoader: A data loader with “smart loading” behavior that adapts automatically when PyTorch switches to evaluation mode.
Model: A wrapper around
torch.nn.Modulethat stores additional metadata and allows saving and loading model state from disk.LearningSchema: A dataclass that encapsulates advanced optimizer settings, schedulers, and gradient operations. It includes convenient methods for standard configurations.
Loss and Metric: Classes that wrap loss and metric functions. They support operator overloading for combining multiple losses/metrics and provide automatic self-documentation.
Test: A class for evaluating model performance on a test dataset. It reports metric values to registered trackers and can optionally store outputs for qualitative analysis.
Trainer: Trains a model according to a given learning schema and optionally validates it on a validation dataset. It supports callbacks executed before and after each epoch and can save/load checkpoints (including module and optimizer states).
Note: If the type annotations of the DataLoader, Model, and Loss/Metric are
incompatible, the type checker will raise an error when instantiating the
Trainer or Test classes.
Train the model
We perform a basic training cycle using the library implementations.
from drytorch import DataLoader, LearningSchema, Loss, Model, Trainer
cfg_train = UpsamplingExperiment.get_config().train
train_loader = DataLoader(training_dataset, batch_size=1)
model = Model(network, name='DeepPriorNet')
learning_schema = LearningSchema.adam(cfg_train.lr)
loss = Loss(downsampled_mse, 'MSE')
trainer = Trainer(
model, loader=train_loader, loss=loss, learning_schema=learning_schema
)
trainer.train(cfg_train.n_epochs)
[2026-05-29 11:58:42] - Training DeepPriorNet started
[2026-05-29 12:00:38] - Training ended
from drytorch import Metric, Test
test_loader = DataLoader(test_dataset, batch_size=1)
metric = Metric(target_psnr, 'PSNR Target', False)
test = Test(model, loader=test_loader, metric=metric)
test(store_outputs=True)
[2026-05-29 12:00:38] - Testing DeepPriorNet started
Qualitative results

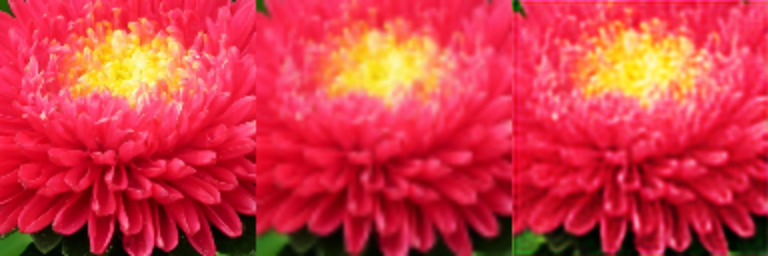

We get the stored output with the deep prior reconstruction from the previous test and visualize it side by side with the original image and the baseline reconstruction.
Visually, the deep prior image should be able to recover some of the high-frequency details.
reconstructed = test.outputs_list[0].flower_reconstructed.squeeze()
display_tensor_images(
{
'Original': flower_torch,
'Baseline': baseline_reconstruction,
'Deep Prior': reconstructed,
}
)
End the experiment
Documentation
Documentation is stored both on disk and through the selected trackers.
Basic run information is saved in the
.drytorchfolder.The
metadatafolder contains a readable representation extracted from the Model, Trainer, and Test classes, documenting their attributes recursively (only if you have PyAML installed).The
csvfolder stores a dump of all metrics produced by the Trainer and Test classes.
Stopping the run
To rerun this notebook a second time and start a new run, you must first stop the current one (this happens automatically if you use run as a context manager). Stopping the run also takes care of cleaning up resources.
run.stop()
Data Distributed Training
DRYTorch supports data-distributed processing. DRYTorch does not provide a default setting for data-distributed training but lets the user define the data-parallelism strategy.
The user needs to set up the distributed training environment and indicate explicitly set the device for each process. DRYTorch library implementation will do the rest (distributed loading, consistent checkpointing, parallelized model, synchronized metrics, and deduplicated logging).
For more advanced distributed training strategies (model sharding,
data parallelism + data-distributed parallelism, etc.), it is recommended
to subclass DRYTorch’s Model and LocalCheckpoint classes.
Define train worker:
The pipeline for distributed training is the same as before.
To set up and clean up the distributed environment, see the [official tutorial] (https://pytorch.org/tutorials/intermediate/ddp_tutorial.html).
To see how to extend distributed support to metrics from torchmetrics and
torcheval, see the metrics_and_losses tutorial.
def train_and_eval() -> None:
"""Train the model in distributed mode."""
ddp_cfg_train = UpsamplingExperiment.get_config().train
ddp_training_dataset = TrainingDataset(flower_torch_downsampled)
ddp_train_loader = DataLoader(ddp_training_dataset, batch_size=1)
ddp_test_dataset = TestDataset(flower_torch)
ddp_network = DeepPriorNet()
ddp_model = Model(ddp_network, name='DeepPriorNet')
ddp_learning_schema = LearningSchema.adam(ddp_cfg_train.lr)
ddp_loss = Loss(downsampled_mse, 'MSE downsampled')
ddp_trainer = Trainer(
ddp_model,
loader=ddp_train_loader,
loss=ddp_loss,
learning_schema=ddp_learning_schema,
)
ddp_trainer.train(ddp_cfg_train.n_epochs)
ddp_test_loader = DataLoader(ddp_test_dataset, batch_size=1)
ddp_metric = Metric(target_psnr, 'PSNR Target', False)
ddp_test = Test(ddp_model, loader=ddp_test_loader, metric=ddp_metric)
ddp_test(store_outputs=True)
return
def worker(rank: int, world_size: int) -> None:
"""Wrapper for distributed training.
Args:
rank: rank of the current process.
world_size: total number of processes.
"""
setup(rank=rank, world_size=world_size)
ddp_experiment = UpsamplingExperiment(
settings,
name='Data Distributed Training',
par_dir=pathlib.Path('experiments'),
)
ddp_experiment.trackers.subscribe(CSVDumper())
try:
with ddp_experiment.create_run():
train_and_eval()
finally:
cleanup()
Note that the previous code will not work in a notebook environment.
